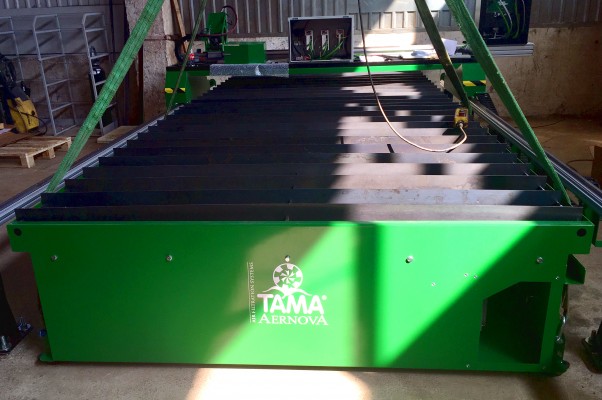

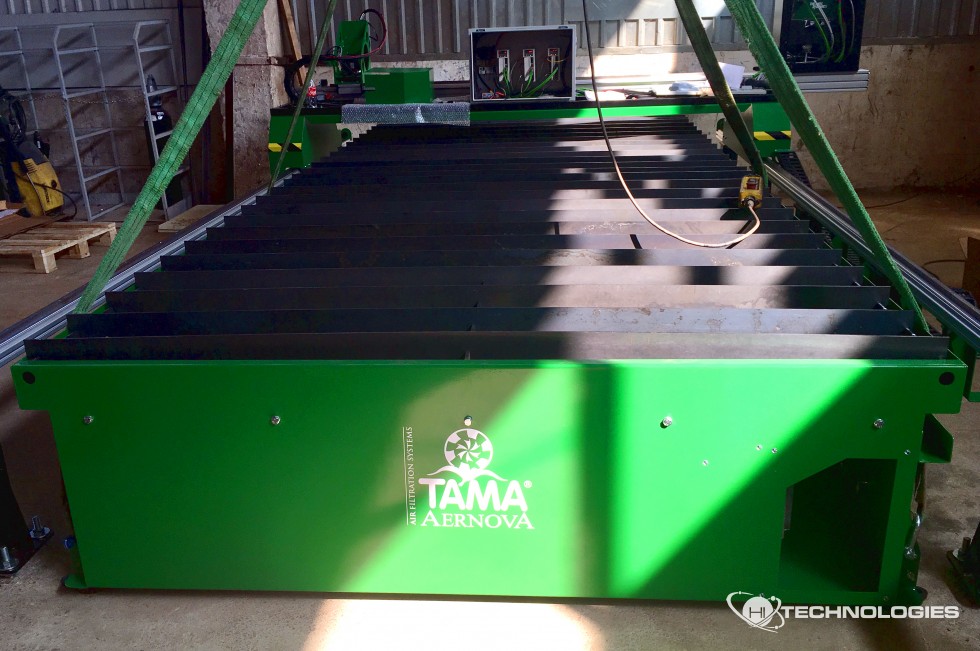

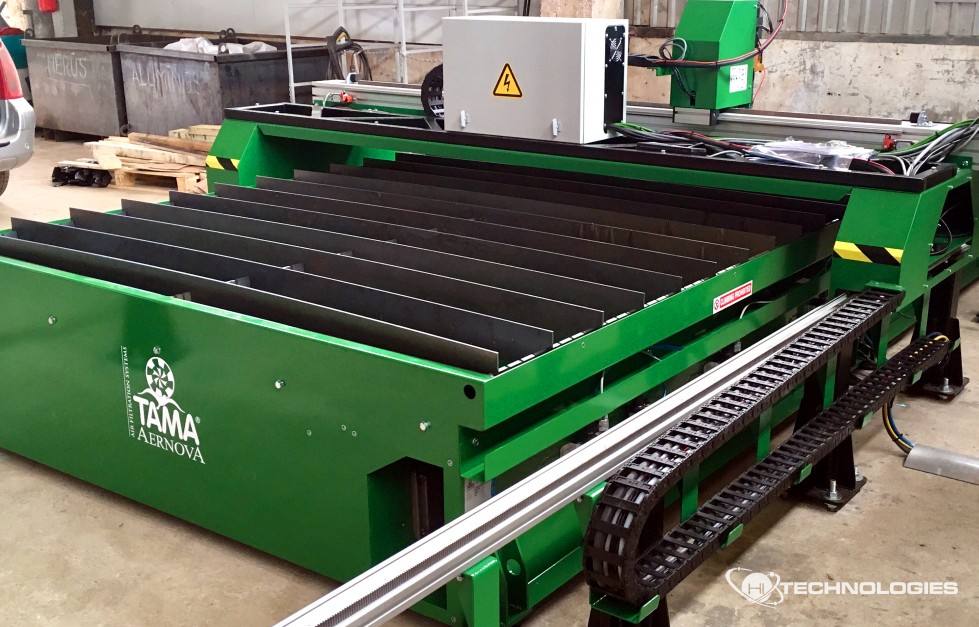

LT Cutting Table with structure for maximum thicknesses of 30mm sheet metal, 260A.

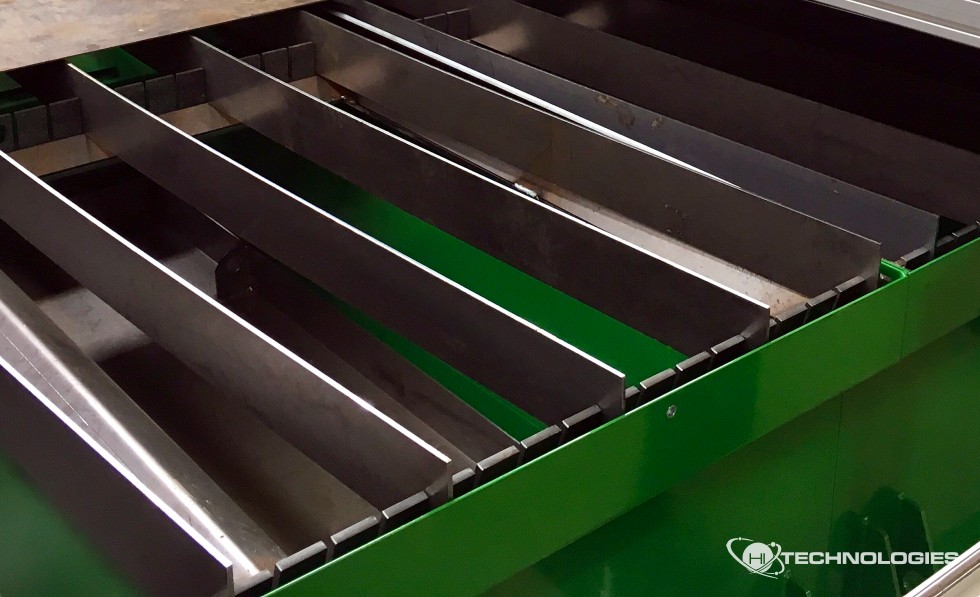

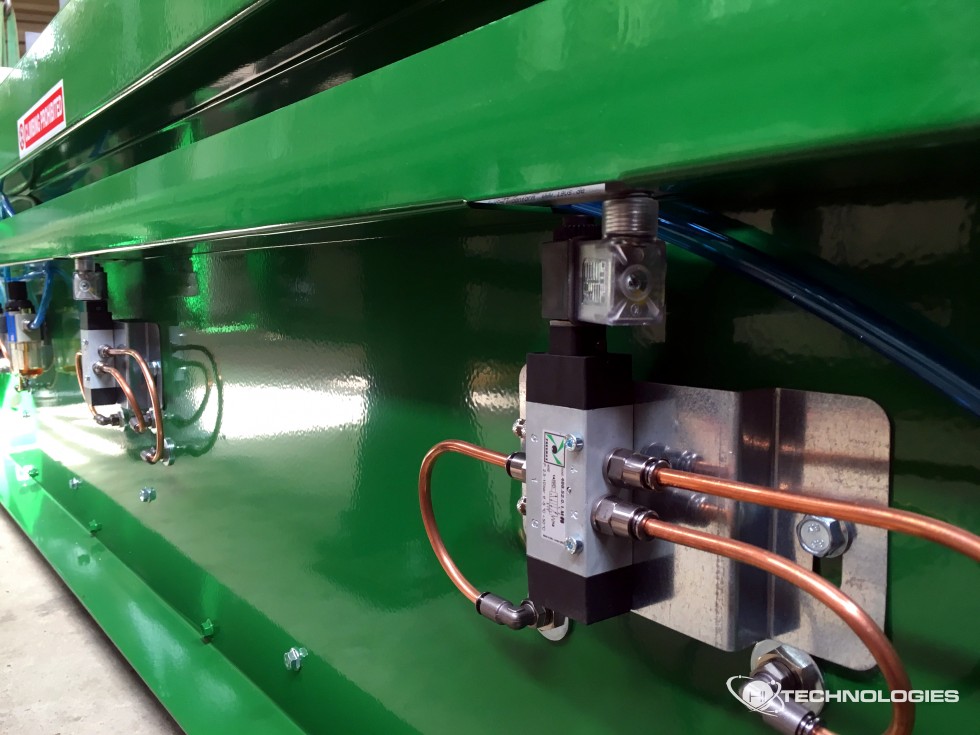

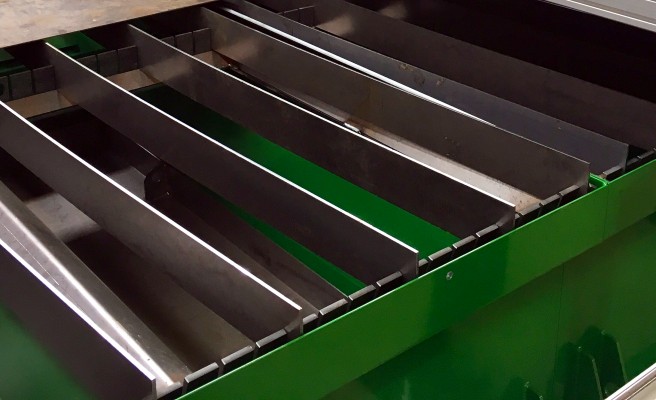

The suction table is divided into sections, activated by the cutting machine, to concentrate fume and dust extraction only where suction is necessary, reducing the air flow required and optimising energy consumption.The suction table can support sheet metal plates with a maximum thickness of 30 mm, and torches with a maximum power of 260 A. The slag containers could be easily removed from the top (after the lifting of the counter frames) without interfering with the outer structure of the machine, to simplify the slag empting procedures. The cutting bars of the counter frames can be individually replaced, in an easy and fast way. The LT downdraft cutting table is modular and compatible for each length and width in easily overlapping and transportable elements. The Modules are usually assembled on-site, with tightening bolts. The suction table could be levelled by the calibration of the adjustable feets.

Data sheet...

MT Downdraft cutting table designed for cutting sheet metal up to 200 mm thickness.

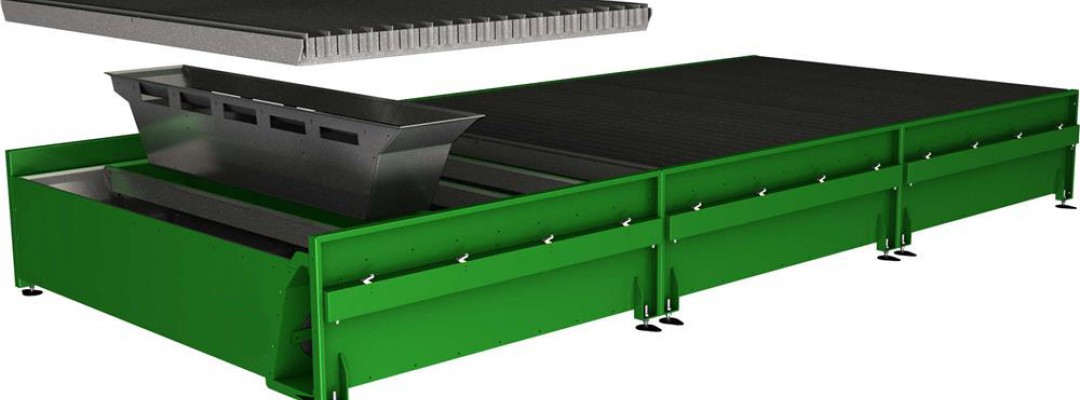

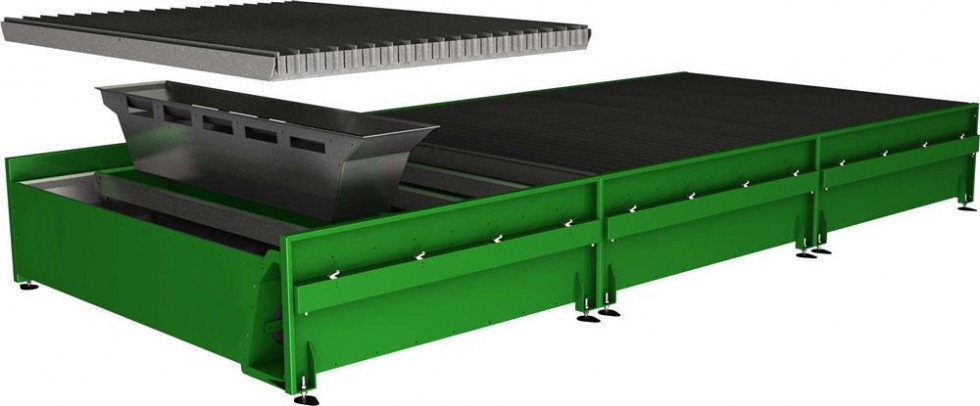

The MT downdraft cutting table is a product specially designed for cutting sheet metal up to 200 mm thickness. The part of the downdraft cutting table in the areas activated by the cutting machine allows to focus the suction of fumes and dust in order to reduce the required air flow and optimize the consumption. The removal of the tanks is done easily from above, without interfering with the external structure of the machine, making it easy to empty of waste content. The downdraft cutting table is modular and for each length and width elements are easily stackable and transportable. The junction between the modules with special clamping elements is quick and easy and the desk can be easily leveled thanks to the adjustable feet.

Data sheet...
